100m Measurement Terrestrial 3D Laser Scanner LiDAR EasyScan T05

Name: 100m Measurement Terrestrial 3D Laser Scanner LiDAR EasyScan T05
Brand: EPiC LiDAR
Price: 1 USD

Buy cheap 100m Measurement Terrestrial 3D Laser Scanner LiDAR EasyScan T05 product

Brand Name : EPiC LiDAR

Model Number : EasyScan T05

Certification : CE, FCC, ISO9001...

Place of Origin : China

MOQ : 1 set

Price : Contact us

Payment Terms : L/C, T/T

Supply Ability : 100 Sets/ Month

Delivery Time : 2 weeks

Packaging Details : Tool Case

Measurement Range : 0.5m～100m@20%

FoV : Horizontal 360°， Vertical 268°

Precision : 5mm@10m, 8mm@30m, 1cm@100m

Weight905nm : 3.7kg

Point Cloud Density : 10m: >25,000 pts/㎡

Camera : 3 Embedded Cameras

Contact Now

Terrestrial 3D Laser Scanner EPiC LiDAR EasyScan T05 for BIM construction measurement digital twins

Product Introduction

Lightweight & Exquisite | Easy scanning

The overall design of the system is extremely lightweight, and a variety of sensors are highly integrated, which can ensure the rapid and effective acquisition of high-precision true color point clouds under different application scenarios, and lead a new development direction of the terrestrial 3D laser scanner.

Product Specification

System Parameter	Weight	3.7kg
	Dimension	LI25WI24H265mm
	Average Power Consumption	20W
	Battery Duration	2hr For single Battery
	FoV	Horizontal 360°,Vertical 268°
	Data Storage	U-Disk 64GB
	Operating Temperature	-10C~50C
	Storage Temperature	-20C~60℃
	Aluminum Alloy tripod	Weight:1.92kg Safe Load:8kg max.Height:1.49m
Laser Scanning Unit	Scan Principle	ToF
	Laser Class	Class I
	Wavelength	905nm
	Measurement Range	0.5m～100m@20%
	Scanning Point Frequency	320,000pts/s
Operation Performance	Precision	1cm@100m
	Ranging Accuracy	5mm@10m,8mm@30m,Icm@100m
	Minimum Data Collection Time	60s
	Point Density	0m:>25,000pts/m²
		30m:>3,200pts/m²
		00m:>300pts/m²
Embedded Camera	FoV	360°
Embedded Camera	mage Resolution	66MP

Features:

High Integration

With three embedded high-definition cameras and one smart battery.

High Accuracy

5mm point cloud accuracy and pixel-level colorization.

Intelligent Workflow

One-click to collect data, it can calculate and splice data automatically.

Application:

100m Measurement Terrestrial 3D Laser Scanner LiDAR EasyScan T05

Infrastructure Digital Underground BIM Mine Tank

Management Plant Monitoring Calibration

Accessories

Case

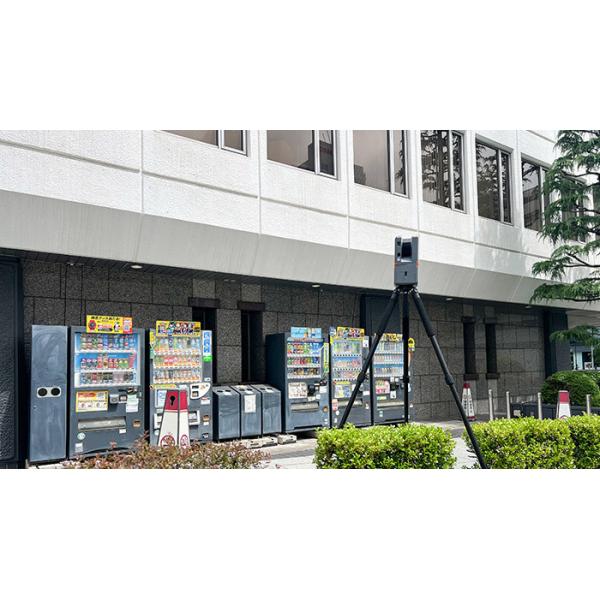

EasyScan T05 Applied to BIM in Japan

100m Measurement Terrestrial 3D Laser Scanner LiDAR EasyScan T05

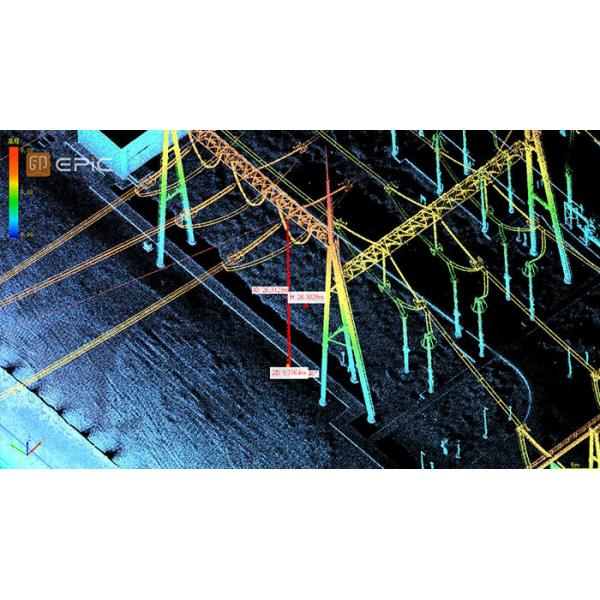

Sample Data Display

100m Measurement Terrestrial 3D Laser Scanner LiDAR EasyScan T05
